Electromagnetic Shielding Film Coating Machine: Advanced Solution for EMI Protection

Are you looking for solid hardware to deliver high-performance electromagnetic interference protecting materials? The Electromagnetic Shielding Film Coating Machine from Shaanxi Beiren Printing Machinery conveys exactness coating innovation for your progressed gadgets applications. With over 60 a long time of fabricating mastery and more than 4,000 machines working around the world, we get it your require for steady quality and dependable generation. This specialized coating framework applies conductive layers onto adaptable substrates, making movies that ensure touchy hardware from flag impedances in smartphones, car sensors, and restorative devices.

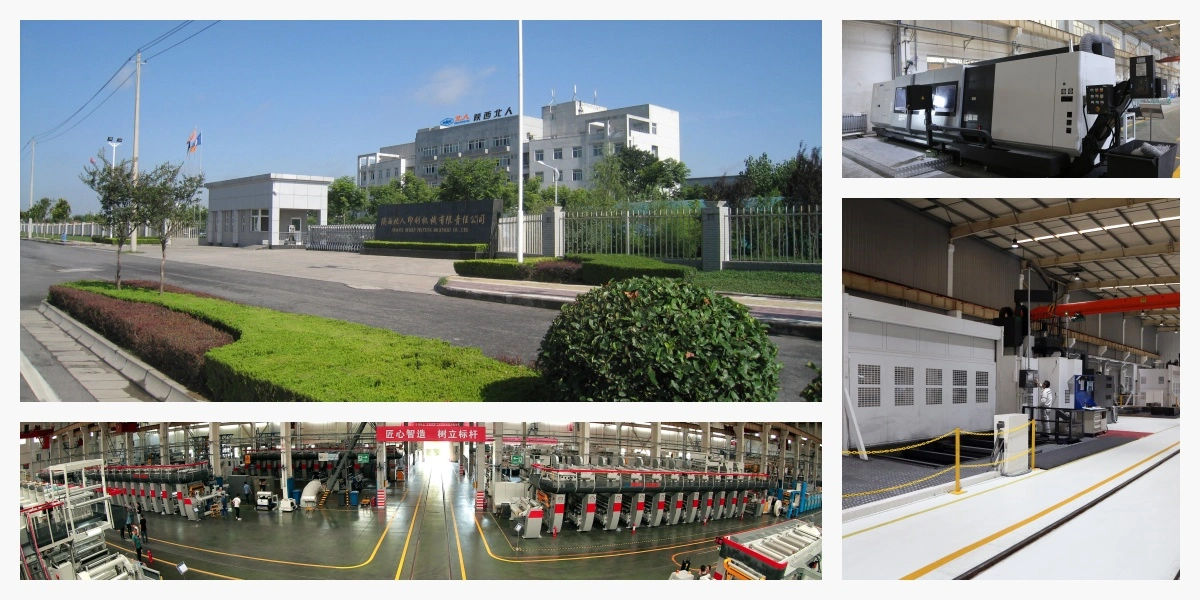

Beiren Printing Machinery Factory

Why Choose Our Shielding Film Coating Solution?

Precision Engineering for Critical Applications

Your generation requests precision. Our coating machine handles the sensitive adjust between speed and precision.

The framework forms base materials counting PET movies from 15μm to 100μm thickness. You get uniform coating application over widths up to 1,950mm. This capability things when you're creating materials for adaptable printed circuits or car radar frameworks where consistency straightforwardly impacts performance.

Flexible Coating Technology

We've outlined this gear with flexibility in intellect. The micro-concave and comma edge coating strategies work together to accomplish coating damp weights from 10 to 150g/㎡.

This range allows you to:

Create ultrathin movies for space-constrained devices
Produce heavy-duty protecting for mechanical applications
Adjust rapidly between distinctive item specifications

Advanced Drying System

Temperature control decides your product's conductivity. Our 24-meter drying stove highlights six autonomous zones. Each zone keeps up exact warming to avoid surface cleaning and guarantee legitimate curing of conductive materials.

You can select from numerous warming methods:

Hot oil warming for steady temperature profiles
Steam warming for vitality efficiency
Natural gas or electric warming based on your office requirements
Hot discuss warming for quick dissolvable evaporation

This adaptability makes a difference you optimize both item quality and working costs.

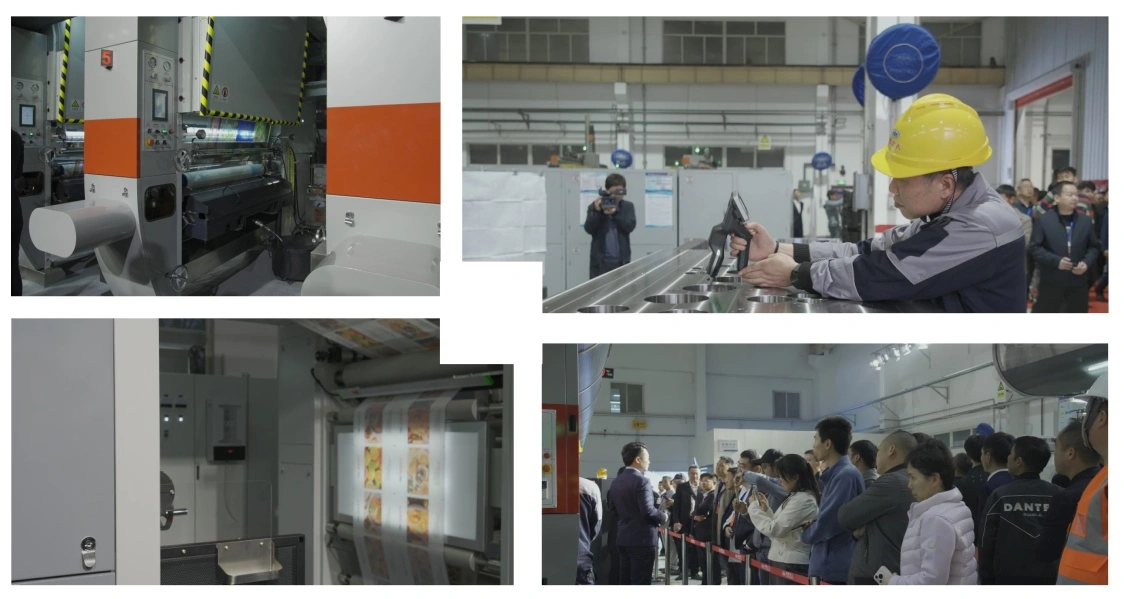

Gravure printing machinery factory workshop

Technical Specifications

Parameter	Specification
Base Material (First)	PET 50~100μm
Base Material (Second)	PET 15~100μm
Equipment Speed	60m/min
Coating Width Options	1350mm / 1650mm / 1950mm
Maximum Unwind Diameter	φ800mm
Maximum Winding Diameter	φ800mm
Coating Method	Micro-concave + Comma blade
Coating Wet Weight Range	10~150g/㎡
Oven Configuration	6 zones × 4000mm = 24000mm total
Heating Options	Hot oil / Steam / Hot air / Natural gas / Electric
Operating Speed	Up to 60 meters per minute

Key Applications in Your Industry For Electromagnetic Shielding Film Coating Machine

Consumer Electronics Manufacturing

Your smartphone and wearable gadget generation lines require ultrathin protecting movies. The Electromagnetic Shielding Film Coating Machine produces materials that avoid flag obstructions between recieving wires, processors, and show components. These movies withstand rehashed flexing without losing conductivity.

Automotive Electronics

Modern vehicles depend on sensors and radar frameworks. You require protecting materials that perform dependably over extraordinary temperature ranges. Our coating framework produces movies for wrapping ECU cables and sensor lodgings, securing basic frameworks from electromagnetic noise.

Medical Equipment

Imaging gear requires high-grade protecting to keep up flag judgment. The machine forms wide-web conductive materials utilized in MRI and X-ray chassis lining, assembly strict therapeutic gadget standards.

Qualification Certificate

Quality Control Built Into Every Machine

We get it that reliable quality secures your notoriety. Our gear bolsters thorough review protocols:

Coating Consistency: Exactness application guarantees reliable conductivity over the whole web width. This avoids execution holes in your wrapped up products.

Adhesion Execution: The coating bonds solidly to substrates, surviving downstream preparing like die-cutting and cover without delamination.

Surface Quality: Clean coating application minimizes surrenders that may compromise protecting effectiveness.

The Shaanxi Beiren Advantage

Proven Manufacturing Excellence

Since 1967, we've centered solely on changing over gear. This specialization implies you advantage from decades of collected information. Our 70% advertise share in China reflects the believe producers put in our technology.

Innovation Through Research

Our R&D office utilizes over 100 senior engineers committed to progressing coating innovation. They work on arrangements to challenges you confront daily—from taking care of ultra-thin substrates to anticipating molecule sedimentation in conductive inks.

Precision Manufacturing Capabilities

We fabricate key components in-house utilizing over 50 machining centers from Japan and Germany. This control over basic parts guarantees steady machine quality. Our 30,000-square-meter gathering workshop produces more than 220 machines every year, each built to demanding standards.

Comprehensive Support

You get more than hardware. Our group gives coordinates arrangements for shrewdly fabricating, making a difference you optimize generation proficiency and item quality all through your facility.

Invest in Reliable Production Technology

The Electromagnetic Shielding Film Coating Machine speaks to a key venture in your fabricating capability. As hardware ended up more advanced and thickly pressed, the request for successful EMI protecting proceeds growing.

This hardware positions you to serve extending markets in 5G gadgets, electric vehicles, and progressed restorative innovation. The combination of accuracy coating, adaptable arrangement, and vigorous development guarantees a long time of dependable operation.

Exhibition Consultation

FAQ

Q: What types of materials can this coating machine process?

A: The machine is designed to process PET films ranging from 15μm to 100μm thickness, with coating widths available in 1350mm, 1650mm, or 1950mm options. It supports coating wet weights from 10 to 150g/㎡, making it suitable for various electromagnetic shielding applications from ultrathin consumer electronics to heavy-duty industrial shielding materials.

Q: How does the machine ensure consistent coating quality across the web width?

A: Our equipment utilizes a dual coating method combining micro-concave and comma blade technology, which ensures uniform application across the entire web width up to 1,950mm. The 24-meter drying oven with six independent temperature zones prevents surface skinning and ensures proper curing, resulting in consistent conductivity and adhesion performance.

Q: What heating options are available, and how do I choose the right one?

A: We offer five heating methods: hot oil, steam, hot air, natural gas, and electric heating. Your choice depends on your facility's infrastructure and operational priorities. Hot oil provides stable temperature profiles, steam offers energy efficiency, hot air enables fast solvent evaporation, while natural gas and electric options suit different energy cost structures.

Q: What is the production speed, and can it be adjusted for different products?

A: The machine operates at speeds up to 60 meters per minute. The speed can be adjusted based on your specific product requirements, coating weight, and drying needs. This flexibility allows you to optimize between throughput and quality for different electromagnetic shielding film specifications.

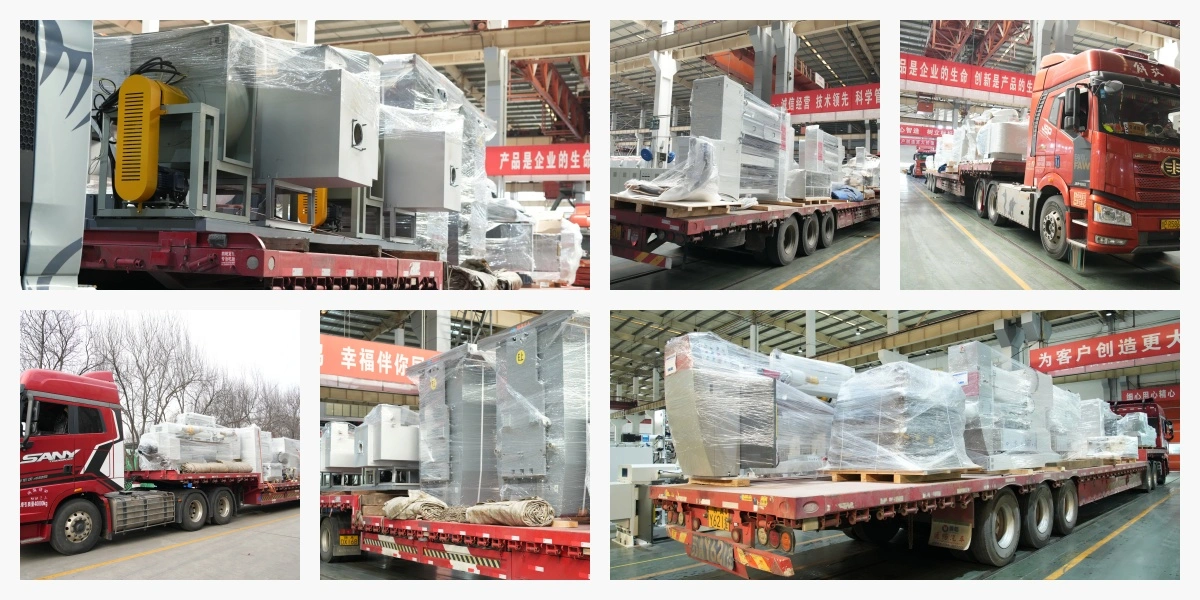

Printing machinery packaging and shipping
