Unit-Type Rotogravure Printing Machine

Unit-Type Rotogravure Printing Machine | Shaanxi Beiren Printing Machinery

Our Unit-Type Rotogravure Printing Machine brings you industry-leading exactness and effectiveness. This progressed measured printing press highlights autonomous color stations orchestrated on a level plane, each with its claim drying framework. Not at all like conventional setups, this plan gives you prevalent control over complex printing assignments. With enrollment exactness of ±0.1mm and the capacity to handle differing substrates, our machine makes a difference you meet requesting generation necessities. Whether you're printing nourishment bundling or embellishing materials, this innovation guarantees steady, dynamic comes about each single time. Supported by over 60 a long time of fabricating skill and more than 4,000 establishments around the world, we convey unwavering quality you can trust.

Why Choose Our Unit-Type Configuration?

Unmatched Flexibility and Scalability

You require hardware that adjusts to your changing generation requests. Our secluded Unit-Type Rotogravure Printing Machine plan permits you to design anyplace from 6 to 12+ color stations based on your particular necessities. Each autonomous unit works as a self-contained printing station, making it straightforward to include, evacuate, or reconfigure color stations without disturbing your whole generation line.

Superior Print Quality Through Advanced Drying

Traditional printing presses frequently battle with ink re-wetting issues. Our arrangement dispenses with this issue totally. Each color station highlights an amplified free drying burrow (1.8m to 3m long) with high-velocity hot discuss circulation and programmed temperature control. This guarantees exhaustive dissolvable vanishing between each color application, avoiding defilement and conveying fresh, clean pictures each time.

Precision Registration at High Speeds

You can't bear enrollment float amid generation runs. Our Electronic Line Shaft (ELS) innovation prepares each unit with person servo engines for both print and impression barrels. This progressed drive framework keeps up enlistment precision inside ±0.1mm, indeed at speeds surpassing 300 meters per diminutive. Your color-to-color arrangement remains idealize from begin to finish.

Technical Specifications

Key Applications for Your Business For Unit-Type Rotogravure Printing Machine

Flexible Food Packaging

Your food packaging demands the highest safety standards. Our Unit-Type Rotogravure Printing Machine excels at printing multi-layer laminates for retort pouches, snack bags, and high-barrier packaging. The superior inter-station drying ensures residual solvent levels meet strict FDA and EU regulations (typically <5 mg/m²). The precise tension control prevents substrate stretching, maintaining barrier properties critical for food preservation.

Decorative Materials and Laminates

Do you produce decorative papers for flooring or furniture? This machine handles wide-web printing with heavy ink laydown requirements. The modular linear design supports large repeat lengths needed for wood grain and stone patterns while maintaining exceptional color consistency across massive production runs.

Tobacco and Beverage Packaging

When printing cigarette packs or beverage cartons, you need high-speed output combined with inline finishing capabilities. The unit-type configuration allows seamless integration of embossing units, UV varnishing stations, or cold seal coating systems without compromising print registration.

Advanced Features That Boost Your Productivity

Intelligent Ink Management System

Our high-speed trolley-type ink circulation system features enclosed doctor blade chambers. This minimizes solvent evaporation and maintains stable ink viscosity throughout your production run. The result? Consistent color density and reduced ink waste.

Precision Web Handling

The machine incorporates ultra-low friction pneumatic dancing rollers and load cells at strategic positions. This creates isolated tension zones that adapt to different substrate characteristics. Whether you're running delicate 12-micron BOPP film or heavy board stock, your material stays perfectly controlled.

Quick Changeover System

Time is money in your operation. Our cylinder loading system and pre-registration capabilities reduce changeover time to just 30-45 minutes for an 8-color job. The trolley-type cylinder mounting makes the process smooth and efficient.

Quality You Can Measure

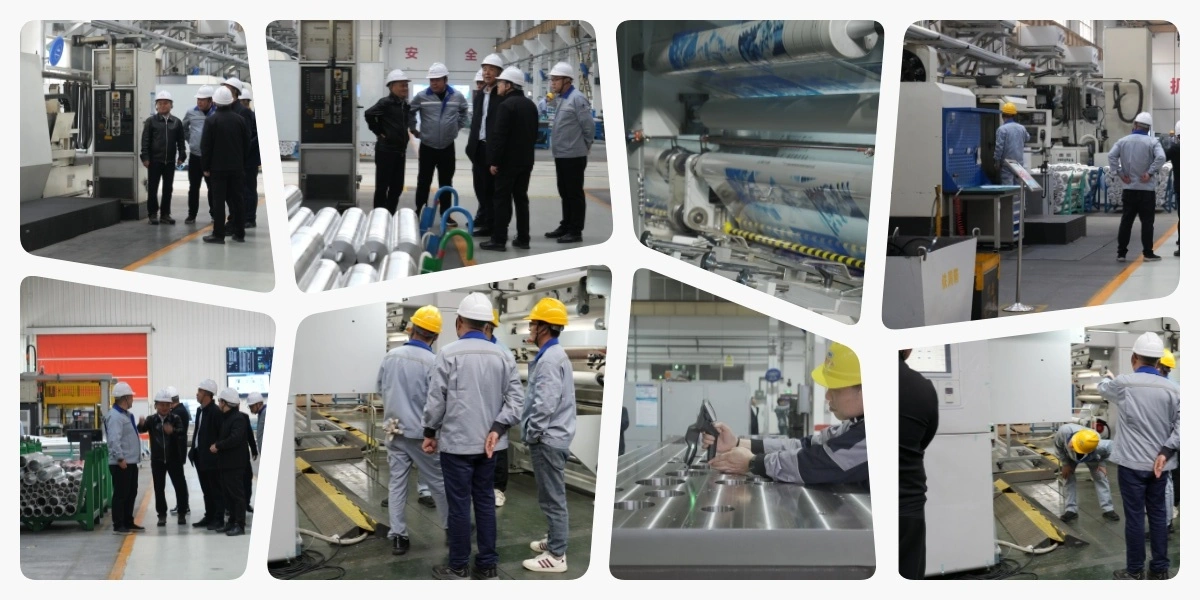

We understand that you need consistent, verifiable quality. Every machine undergoes rigorous Factory Acceptance Testing (FAT) before shipment:

• Registration stability testing during acceleration, constant speed, and deceleration
• Residual solvent analysis using Gas Chromatography to verify drying efficiency
• Impression uniformity checks to eliminate barring or gear marks
• Doctor blade dynamics testing to prevent streaking
• Web handling stability verification at full operating speed

The Shaanxi Beiren Advantage

Proven Manufacturing Excellence

Since 1967, we've been manufacturing converting equipment that sets industry standards. As a national key high-tech enterprise with over 70% market share in China, we bring decades of specialized expertise to every machine we build.

Complete In-House Production

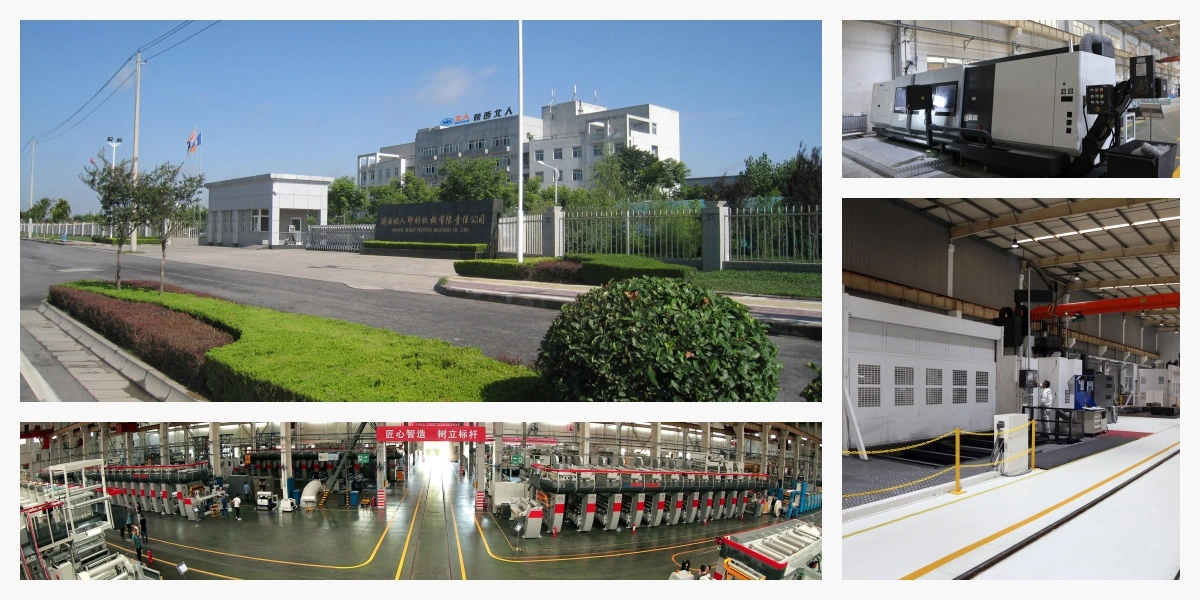

We manufacture all key components in our 30,000 square meter assembly workshop using over 50 precision machining centers imported from Japan and Germany. This vertical integration ensures quality control at every stage and faster delivery times for you.

Dedicated R&D Innovation

Our team of more than 100 senior engineers continuously advances printing technology. We're not just manufacturers—we're the organizers of national standards for web roll rotogravure printing machines in China.

Global Support Network

With more than 4,000 machines operating worldwide, we've built a comprehensive service infrastructure. You get technical support, spare parts availability, and expertise whenever you need it.

Common Questions Answered

Q: How does ELS technology improve my operation?

A: The Electronic Line Shaft framework kills mechanical backfire and vibration. You'll encounter 30% quicker setup times, predominant enrollment exactness, and diminished upkeep since there are no gearboxes or long drive shafts requiring steady lubrication.

Q: Can this machine handle water-based inks?

A: Completely. Our expanded drying burrows with high-velocity discuss spouts and corrosion-resistant specialist edge chambers are particularly designed for water-based ink frameworks. The discuss volume capacity increments by 20-30% compared to standard dissolvable models.

Q: What about tension control for stretchy films like PE?

A: The closed-loop pressure control framework makes confined pressure zones with decrease pressure programming. This avoids polyethylene movies from extending or wrinkling, indeed amid high-heat drying cycles.

Ready to Transform Your Printing Operation?

The Unit-Type Rotogravure Printing Machine from Shaanxi Beiren delivers the precision, flexibility, and reliability your operation demands.

Contact us today: sxbr1967@shaanxibeiren.com.
