Intermittent Flexo Printing Machine: Your Solution for High-Precision Label Production

Our Intermittent Flexo Printing Machine represents the cutting edge of label printing technology. This specialized equipment combines discontinuous web feeding with flexographic printing to solve your biggest production challenges. Unlike traditional full-rotary systems, our machine uses servo-driven motion control that advances the web and performs a precise pull-back motion. This means you can print variable repeat lengths using a single print cylinder. No more expensive cylinder changes for different label sizes.

What Makes Our Intermittent Flexo Printing Machine Different?

You're tired of the limitations that hold your production back. We understand.

Our machine eliminates the requirement to manufacture specific cylinders for every label size. This saves you thousands in tooling costs.

The problems you face daily:

Excessive spending on magnetic cylinders and print sleeves
Hours wasted during job changeovers
Losing money on short-run orders

How we solve them:

Our advanced servo-synchronization system changes everything. You simply swap flexible plates instead of heavy cylinders. Job setups become rapid. Your team spends less time on changeovers and more time producing.

Short runs under 5,000 meters become profitable. Material waste drops dramatically during setup. Your cost per unit decreases immediately.

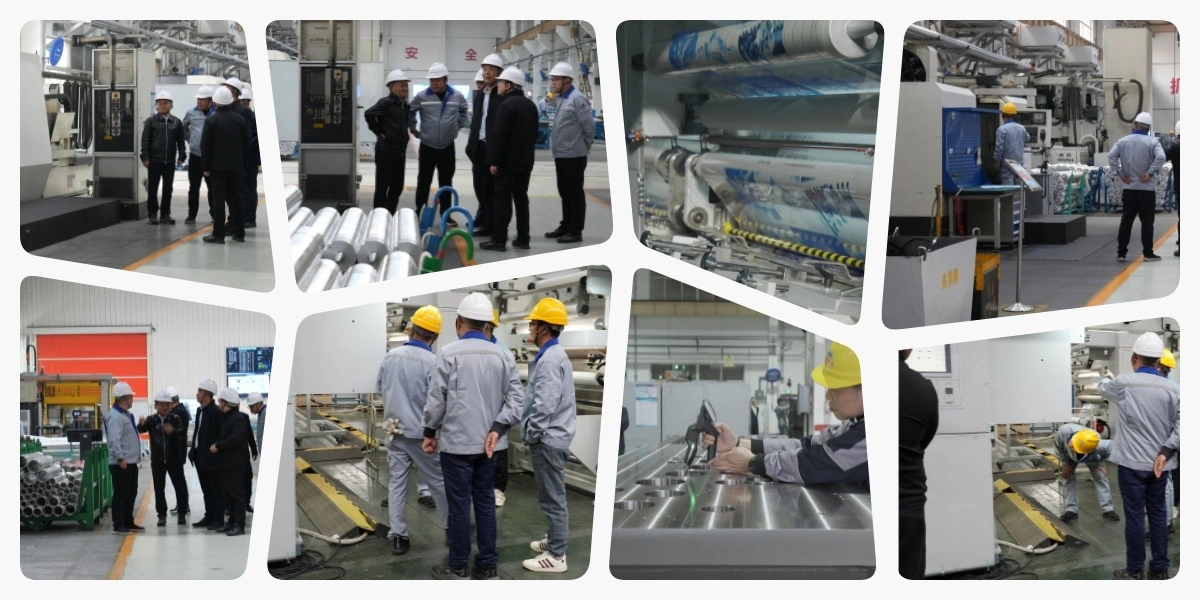

Printing Machinery Factory Workshop

Technical Excellence You Can Depend On

Advanced Drive System

Independent servo motors control every critical function. The unwind, in-feed, print stations, and rewind all operate with precision timing. This shaftless design isolates tension perfectly during intermittent motion.

Speed and Precision Combined

Your production runs at 150 to 280 impressions per minute. High-end configurations reach 80 meters per minute while maintaining registration accuracy of ±0.05mm.

Need faster output? Switch to semi-rotary mode for speeds up to 120 meters per minute.

Versatile Ink Compatibility

Work with the inks that suit your application best:

UV inks for durability
LED-UV for energy efficiency
Water-based inks for sustainability

Our chambered doctor blade systems prevent ink splashing during rapid acceleration cycles. You get consistent color throughout every run.

Exceptional Material Range

Process virtually any substrate your customers request. Our tension control system handles:

Delicate 20-micron unsupported films
Sturdy 350gsm cardboard
Everything in between

Key Technical Specifications

Parameter	Specification
Print Speed	150-280 impressions/min (50-80m/min)
Semi-Rotary Mode	Up to 120m/min
Registration Accuracy	±0.05mm
Substrate Range	20-micron film to 350gsm cardboard
Ink Systems	UV, LED-UV, Water-based
Drive Technology	Independent servo motors (shaftless)
Doctor Blade System	Chambered design
Quality Compliance	CE, ISO 12647-6

Perfect Applications for Your Business

Premium Wine and Spirit Labels

Textured papers require heavy ink laydown. Frequent design variations demand flexibility. Our Intermittent Flexo Printing Machine handles rough textures better than offset while offering cheaper plate costs for your multiple SKUs.

Cosmetics and Personal Care

Small-batch production of high-value items becomes economically viable. Clear-on-clear films for tubes and bottles maintain perfect registration. Our precise tension control prevents material stretching during the stop-and-go cycle.

Industrial and Security Labels

Print durable UL-certified labels with confidence. Battery stickers require specific spot varnishing and adhesive deadening. Our extreme positional accuracy ensures perfect die-cutting integration.

Superior Features That Boost Your Productivity

SDDC Material Feeding System

Automatic feeding and unloading streamlines your workflow. The integrated disc rotary frame with precision safety chuck ensures secure material handling.

Advanced Tension Control

Dual tension systems achieve fine control for different substrate sizes. Wide applicable tension range handles diverse materials effortlessly. The DTS control system links with the main screen for one-click execution using menu memory functions.

Intelligent Roll Diameter Recognition

Fully automatic recognition achieves millimeter-level accuracy. Control cutting loss within 2 meters. Straight cutting blade with gap feeding delivers one blade double cutting efficiency.

Energy-Efficient Drying System

HTPP control temperature technology saves over 60% energy. The 3D nozzle structure creates uniform wind speed across the entire drying area. Sufficient air volume and consistent temperature ensure perfect ink curing.

Precision Installation Platform

3D digital simulation gantry structure with light detection ensures accurate setup. Wall panel fitting and TA positioning deliver repeatable accuracy. Fixed torque anti-loosening mechanisms maintain stability during high-speed operation.

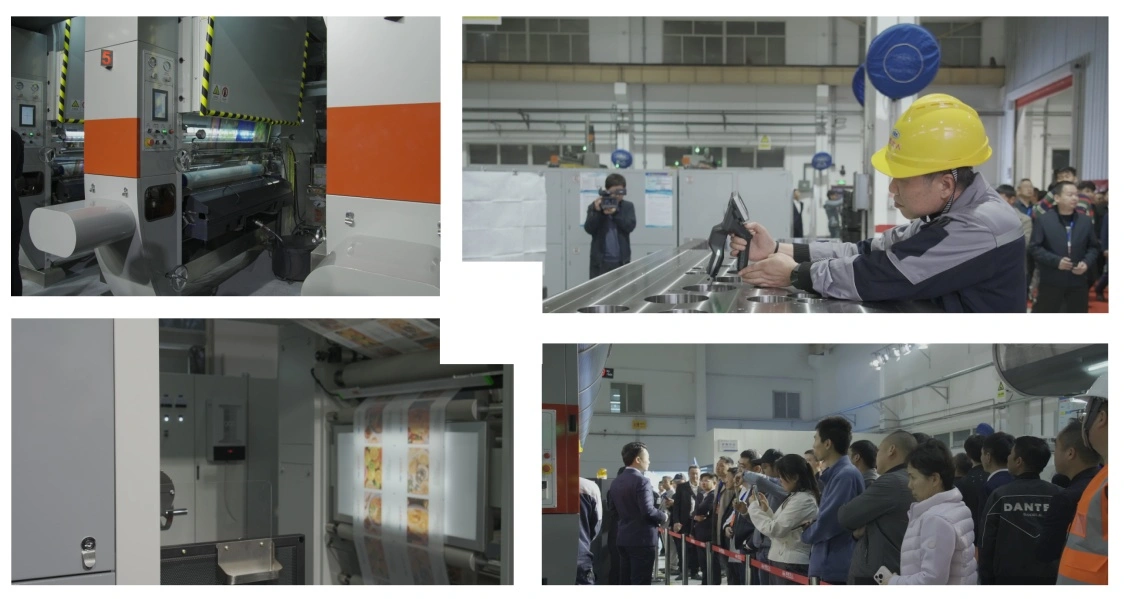

Gravure printing machinery factory workshop

Why Choose Shaanxi Beiren?

We've manufactured converting equipment since 1967. Over 60 years of experience backs every Intermittent Flexo Printing Machine we build.

Our Credentials:

National key high-tech enterprise
Over 70% market share across China
More than 4,000 machines operating worldwide
National standard organizer for web roll rotogravure printing machines

Innovation Through Research

Our R&D department employs over 100 senior engineers. They pursue technical innovation that solves real production challenges. Strong R&D capability combines with advanced manufacturing equipment and an excellent technician team.

Manufacturing Excellence

We produce over 220 machines annually in our 30,000-square-meter assembly workshop. All key parts manufacture in-house using more than 50 machining centers imported from Japan (Okuma) and Germany.

Quality You Can Trust

Our wholesome quality system ensures every machine meets rigorous standards. Impeccable service creates greater value for your operation. We're not just equipment manufacturers—we're creators of solutions that improve your business.

Beiren Printing Machinery Factory

Qualification Certificate

Making Your Investment Decision

When evaluating any label printing equipment, focus on these critical factors:

Registration Stability

Run test grids at varying speeds. The servo pull-back mechanism should maintain registration within 0.1mm. Check for gear marking or banding caused by vibration.

Substrate Handling

Test different materials from BOPP to art paper. Dancers and vacuum boxes must correctly buffer intermittent motion without web snapping or rewind roll telescoping.

Curing Performance

Verify UV lamp dwell time provides sufficient curing despite non-continuous web speed. Perform solvent rub tests on printed samples immediately after high-speed runs.

Exhibition Consultation

FAQ

Q: What is the main advantage of intermittent flexo printing over traditional rotary systems?

A: The key advantage is dramatic tooling cost reduction. Our intermittent system allows you to print variable repeat lengths using a single print cylinder by simply changing flexible plates instead of expensive cylinders. This eliminates the need to manufacture specific cylinders for every label size, saving thousands in tooling costs and making short runs under 5,000 meters highly profitable.

Q: What is the minimum order quantity and delivery time for this machine?

A: As a specialized industrial printing press, each machine is configured to your specific requirements. Lead time typically ranges from 60-90 days depending on customization needs. Contact our sales team at sales@shaanxibeiren.com mailto:sales@shaanxibeiren.com for detailed quotation and delivery schedule based on your production specifications.

Q: Can this machine handle both short runs and high-volume production?

A: Absolutely. The machine excels at both scenarios. For short runs, rapid job changeovers (just swap plates, not cylinders) make orders under 5,000 meters profitable with minimal setup waste. For high-volume production, switch to semi-rotary mode to achieve speeds up to 120 meters per minute while maintaining ±0.05mm registration accuracy.

Q: What types of inks and substrates are compatible with this machine?

A: Our machine offers exceptional versatility. It works with UV, LED-UV, and water-based inks through chambered doctor blade systems. The advanced tension control handles substrates ranging from delicate 20-micron unsupported films to sturdy 350gsm cardboard, making it ideal for wine labels, cosmetics packaging, and industrial security labels.

Printing machinery packaging and shipping

Start Your Production Transformation Today

Our Intermittent Flexo Printing Machine delivers the flexibility, precision, and economy your business needs to thrive.
