Shaftless Air-Lift Plate Loading Rotogravure Printing Machine

Shaftless Air-Lift Plate Loading Rotogravure Printing Machine: Advanced Solution for Modern Flexible Packaging

The Shaftless Air-Lift Plate Loading Rotogravure Printing Machine speaks to a breakthrough in adaptable bundling printing innovation. Not at all like conventional frameworks that depend on overwhelming steel shafts, this inventive machine employments pneumatic funnel shaped chucks to secure printing barrels from both closes. The coordinates air-lift framework consequently positions barrels into print units, dispensing with manual dealing with dangers. This implies you can appreciate quicker work changeovers, predominant print quality, and more secure operations—all in one effective solution.

Why Choose This Advanced Printing Technology?

You're likely pondering what makes this innovation diverse from ordinary rotogravure presses. Here's the answer.

Traditional shaft-based frameworks require your administrators to physically embed overwhelming steel shafts through printing barrels. This handle is time-consuming, physically requesting, and possibly perilous. The shaftless plan changes everything.

With pneumatic chucks working at 6-8 bar weight, your barrels bolt safely in put without any shaft addition. The fail-safe mechanical locking component guarantees your barrels remain put indeed if discuss weight drops unexpectedly.

The air-lift stage does the overwhelming lifting for you. Your administrators no longer require to battle with 100kg+ barrels. A single laborer can total barrel changes in beneath 5 minutes per station. That's a 40-60% lessening in changeover time compared to conventional machines.

Qualification Certificate

Technical Excellence You Can Count On

Let's conversation approximately what this machine can do for your generation line.

Register Accuracy That Matters

Your print quality depends on exact enrollment. Our Shaftless Air-Lift Plate Loading Rotogravure Printing Machine keeps up enrollment exactness inside ±0.1mm. The shaftless drive minimizes rotational dormancy, giving you steady, steady prints indeed at tall speeds.

The heavy-duty cast press divider outline assimilates vibration over working speeds from 150 to 350 meters per diminutive. You get clean, sharp prints without obscure or misalignment.

Versatile Material Compatibility

Your commerce needs adaptability. This machine handles numerous substrate types:

• OPP and BOPP films
• CPP and PE materials
• PET for premium applications
• PVC for specialty products
• NY for demanding applications

Whether you're printing nibble bundling, pharmaceutical foils, or enriching covers, this framework adjusts to your needs.

Key Features That Drive Your Success

Infinite Width Adjustment

You can run barrels of changing widths—from 600mm to 1250mm—without swapping shafts. This adaptability lets you take on different occupations without hardware limitations.

Solvent-Resistant Design

The pneumatic seals and air-lift components stand up to common printing solvents like Ethyl Acetate and MEK. You won't confront untimely wear or startling downtime.

Safety First

Multiple security interlocks anticipate machine operation if the air-lift trolley isn't completely withdrawn or chuck weight falls underneath limit. Your group works in a secure environment.

Real-World Applications For Shaftless Air-Lift Plate Loading Rotogravure Printing Machine

Short-Run Food Packaging

Are you dealing with different SKUs with regular varieties? The quick barrel changeover capability makes brief generation runs financially practical. Print diverse nibble flavors or limited time plans without losing time or money.

Wide-Web Decorative Materials

When creating wood-grain flooring paper or enhancing covers, barrel weight gets to be a genuine concern. The air-lift framework handles overwhelming barrels easily, securing both your administrators and your costly chrome-plated cylinders.

Pharmaceutical Packaging

Cold form blister foils demand precision. The machine's rigid construction and precise tension control prevent creasing and registration loss on aluminum substrates. The ergonomic air-lift system supports clean-room compatible operations.

Technical Specifications

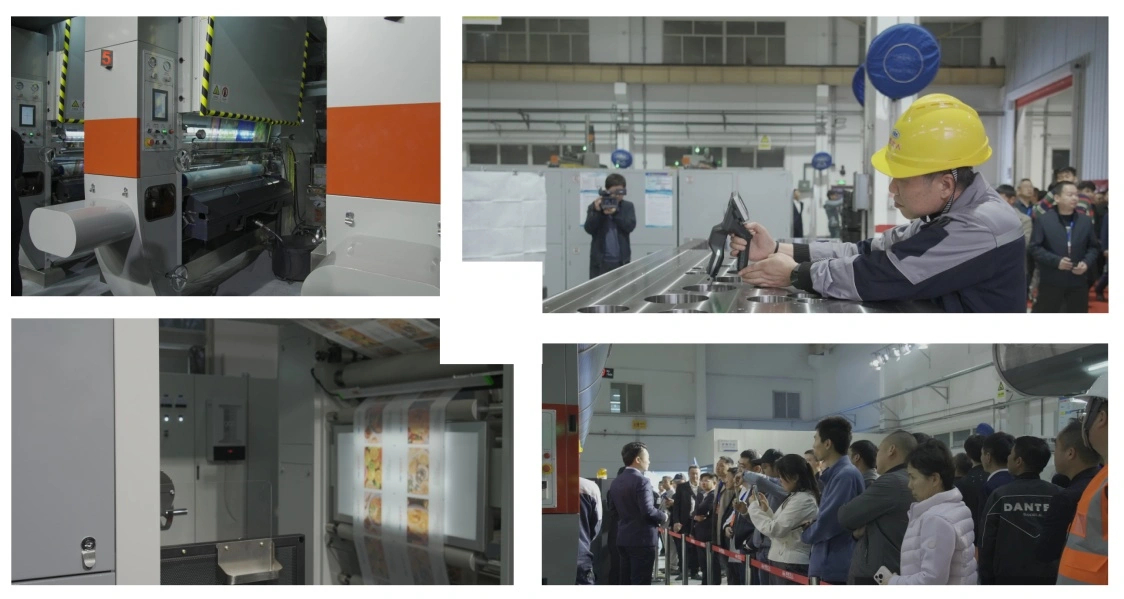

Quality Control You Can Trust

At Shaanxi Beiren, we don't compromise on quality. Every Shaftless Air-Lift Plate Loading Rotogravure Printing Machine undergoes rigorous testing before leaving our facility.

We inspect chucking concentricity using dial indicators to verify runout stays below 0.03mm. This precision prevents bouncing at high speeds.

Our pneumatic load testing subjects the air-lift mechanism to 1.5 times the rated cylinder weight for 24 hours. We check for pressure drops and seal leaks.

The registration stability test involves rapid acceleration and deceleration cycles. We ensure the drive system maintains color superimposition within specification without drift.

Safety interlock verification confirms all sensors work correctly. Your machine won't start unless all safety conditions are met.

Exhibition Consultation

Why Shaanxi Beiren?

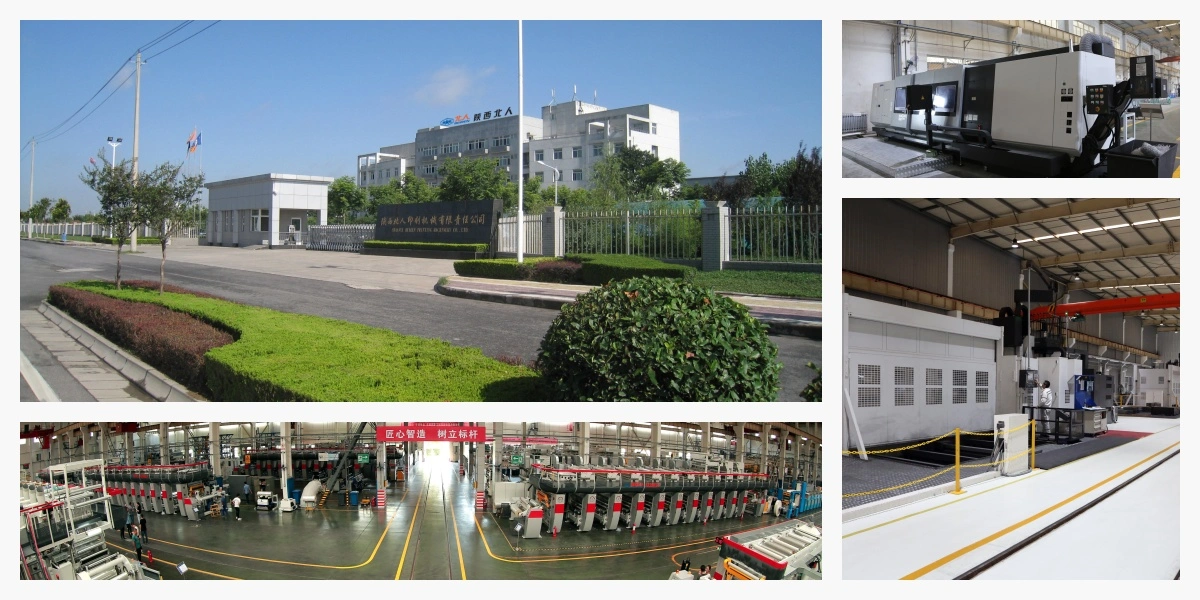

Since 1967, we've been manufacturing converting equipment that sets industry standards. With over 60 years of experience, we hold more than 70% market share across China. More than 4,000 of our machines operate worldwide.

Our R&D department employs over 100 senior engineers who focus on technical innovation. We manufacture more than 220 machines annually in our 30,000 square meter assembly workshop.

All key parts are manufactured in-house using over 50 machining centers imported from Japan (Okuma), Germany, and other leading manufacturers. This control ensures consistent quality in every component.

We're a national key high-tech enterprise and National single championship cultivation enterprise of manufacturing industry. We also organize national standards for web roll rotogravure printing machines.

FAQ

Q: How much faster is cylinder changeover compared to traditional shaft-based systems?

A: Our shaftless air-lift system enables cylinder changes in under 5 minutes per station with a single operator—that's a 40-60% reduction compared to traditional machines. The pneumatic air-lift platform eliminates manual handling of heavy cylinders, significantly reducing setup time between jobs.

Q: What happens if air pressure drops during production?

A: Safety is built into every aspect. Even if pneumatic pressure drops unexpectedly, the fail-safe mechanical locking mechanism keeps cylinders securely in place. Multiple safety interlocks prevent machine operation if chuck pressure falls below the 6-8 bar threshold, protecting both your operators and equipment.

Q: Can this machine handle different cylinder widths without modification?

A: Yes, absolutely. The infinite width adjustment system accommodates cylinders ranging from 600mm to 1250mm without requiring shaft changes or equipment modifications. This flexibility allows you to take on diverse jobs and switch between different product specifications seamlessly.

Q: Is the machine suitable for pharmaceutical and food packaging applications?

A: Definitely. The machine maintains ±0.1mm register accuracy essential for pharmaceutical blister foils and food packaging. The solvent-resistant pneumatic seals withstand common printing chemicals, and the ergonomic air-lift design supports clean-room compatible operations required in pharmaceutical environments.

Your Next Steps

The Shaftless Air-Lift Plate Loading Rotogravure Printing Machine offers the efficiency, safety, and quality your business deserves.
