High-Tension Control Solvent-less Lamination Machine

Are you looking for a reliable solution to create high-barrier flexible packaging without solvent residue? Our High-Tension Control Solvent-less lamination machine offers advanced industrial converting capabilities designed specifically for bonding multiple layers of flexible packaging substrates. This equipment uses 100% solid content reaction-curing adhesives, eliminating organic solvents entirely. With precise tension management and robust motor drive systems, it addresses critical challenges like tunneling effects in foil structures and telescoping of finished rolls. Your production will benefit from stable quality control and compliance with FDA/EU food safety standards.

Why Choose Our Advanced Lamination Technology?

At Shaanxi Beiren Printing Machinery Co., Ltd., we bring over 60 years of manufacturing excellence to every machine we build. Since our founding in 1967, we've established ourselves as a national key high-tech enterprise with more than 70% market share across China. Over 4,000 of our machines operate successfully worldwide, proving our commitment to quality and innovation.

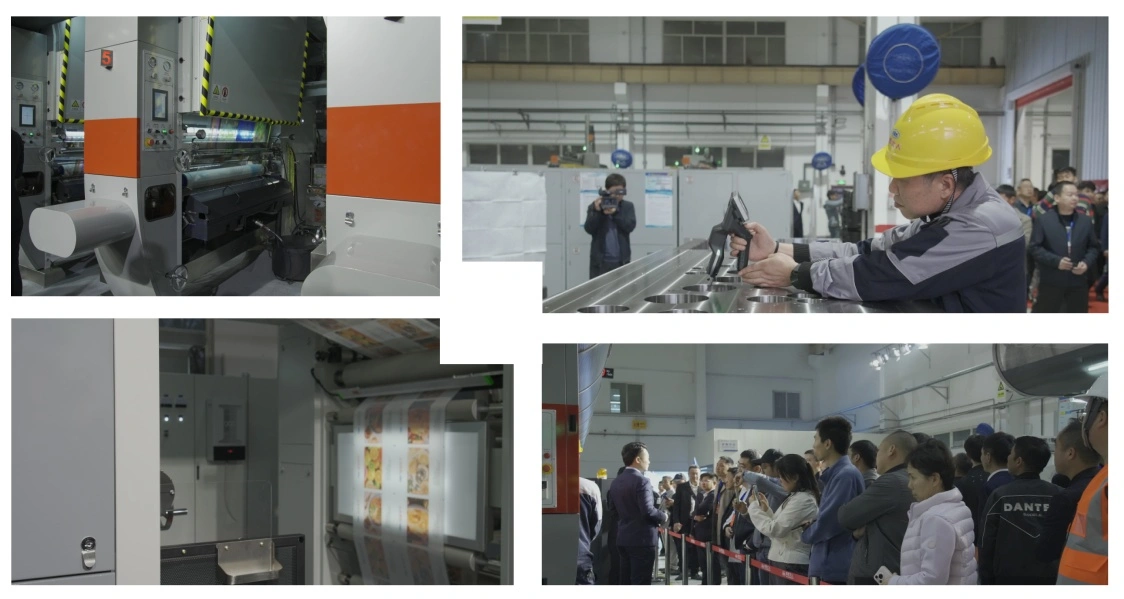

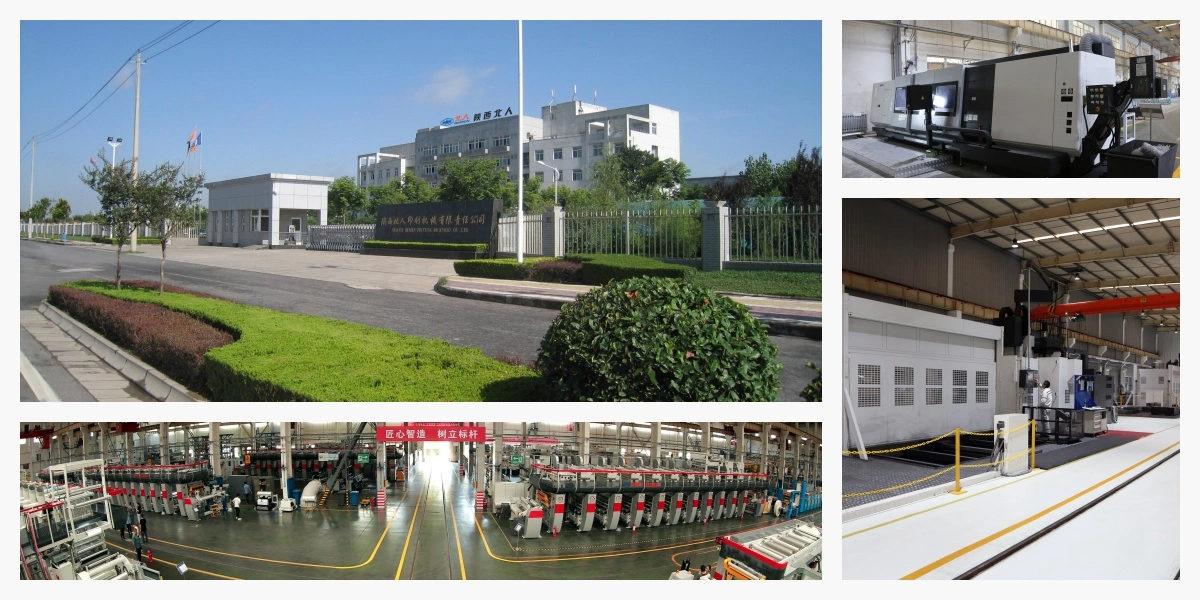

Our dedicated R&D department employs more than 100 senior engineers who focus on technical innovation. We manufacture over 220 machines annually in our 30,000-square-meter assembly workshop. All key components are produced in-house using more than 50 machining centers imported from Japan (Okuma), Germany, and other leading manufacturers.

You can trust our equipment because we combine advanced manufacturing capabilities with a wholesome quality system and impeccable service support.

Qualification Certificate

Understanding High-Tension Control Technology

What makes this High-Tension Control Solvent-less lamination machine different from standard laminators? The answer lies in its sophisticated tension management system.

The equipment features a multi-vector motor drive system with closed-loop tension feedback mechanisms. These use float rollers or load cells engineered specifically to handle high-tensile stress requirements. Your production will achieve mechanical design speeds of 350–500 m/min while maintaining tension control ranging from 50N to over 350N.

This precise control prevents common defects that plague flexible packaging production. You'll avoid tunneling effects in aluminum foil structures, elastic deformation in specialized films, and telescoping issues caused by improper winding tension. The machine mechanically decouples coating tension from winding tension, ensuring flatness and optical clarity in your finished products.

Key Technical Specifications

Core Advantages for Your Production

Zero Solvent Residue

Your products will meet strict FDA and EU food safety migration limits. The 100% solid content adhesive eliminates concerns about solvent retention entirely.

Superior Quality Control

The high-precision metering system controls adhesive application with remarkable accuracy. You'll achieve coating weights between 0.8 to 2.5 gsm with tolerances of just ±0.05 gsm.

Energy Efficiency

Without the need for drying ovens, your facility will realize significant energy savings compared to traditional solvent-based systems.

Defect Prevention

The differential speed smoothing technology prevents orange peel defects. Meanwhile, taper tension control logic eliminates starring defects in rewound rolls.

Applications Across Critical Industries

Retort Pouch Manufacturing

When you're producing PET/AL/CPP retort pouches, precise tension control becomes crucial. The machine handles aluminum foil (7–9 microns) with zero elasticity, preventing tears or wrinkles during bonding. Your pouches will survive 121°C sterilization without delamination.

Heavy-Duty Industrial Packaging

For pet food or chemical packaging using Paper/PE or PET/PE structures, the equipment applies higher newton-force tension to maintain flatness. This prevents delamination during heavy coating processes.

Pharmaceutical Applications

In blister lidding production (OPA/AL/PVC), the High-Tension Control Solvent-less lamination machine maintains strict register accuracy and flatness. Your lidding material will run smoothly on high-speed blister packing lines without curling or jamming.

Quality Control You Can Trust

We implement rigorous quality verification protocols throughout manufacturing and operation:

Coating Weight Verification: Regular checks using offline weight analysis or inline IR sensors prevent delamination from low adhesive weight or telescoping from excess application.

Mixing Ratio Monitoring: Continuous monitoring ensures A:B adhesive ratios stay within specifications. Deviations exceeding 2% are immediately flagged to prevent non-curing or greasy laminate issues.

Visual Inspection Systems: Stroboscopic inspection detects optical distortions in real-time during high-speed operation.

Bond Strength Testing: Post-cure destructive testing per ASTM F904 standards ensures laminates meet required Newton/15mm force specifications before shipping.

Exhibition Consultation

Frequently Asked Questions

Q: Can the machine handle thin films like 12-micron PET?

A: Absolutely. While the system excels with heavy-duty substrates, low-friction dancer rolls and servo motors allow precise tension control for thin films too.

Q: How do you prevent orange peel defects?

A: We use a differential speed ratio between the metering roll and transfer roll. This smooths the adhesive layer before application, minimizing texture issues.

Q: What about tension stability during speed changes?

A: During Factory Acceptance Testing, we run speed ramp tests from 0 to 400m/min. Float roll position deviates less than ±5mm, proving real-time vector drive response.

Partner with Industry Leaders

Shaanxi Beiren Printing Machinery Co., Ltd. serves as the organizer enterprise for national standards in web roll rotogravure printing machines. We're recognized as a National single championship cultivation enterprise of manufacturing industry.

Our commitment extends beyond equipment manufacturing. We provide integrated solutions for intelligent factories with comprehensive service support. You'll benefit from our extensive expertise in converting equipment including rotogravure printing machines, dry lamination machines, CI flexo printing machines, and coating machines.

Get Started Today

Ready to upgrade your flexible packaging production with our High-Tension Control Solvent-less lamination machine?

Contact us at sxbr1967@shaanxibeiren.com to schedule a consultation.
