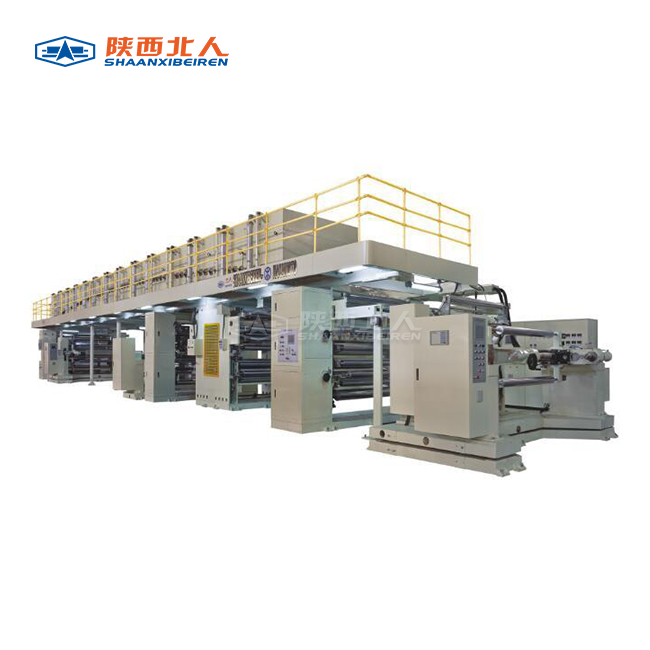

Diffusion Film Coating Machine - Precision Optical Coating Solutions

Our Diffusion film Coating Machine delivers exceptional performance for optical film production. At Shaanxi Beiren Printing Machinery Co., Ltd., we bring over 60 years of manufacturing excellence to your production line. This advanced coating system applies uniform optical diffusion layers onto transparent substrates, primarily PET films. You'll eliminate common display defects like hot spots and brightness irregularities. Our machine ensures your end products meet the demanding standards of LCD and LED panel manufacturers. With proven technology and precision engineering, you can trust our equipment to boost your production quality and efficiency from day one.

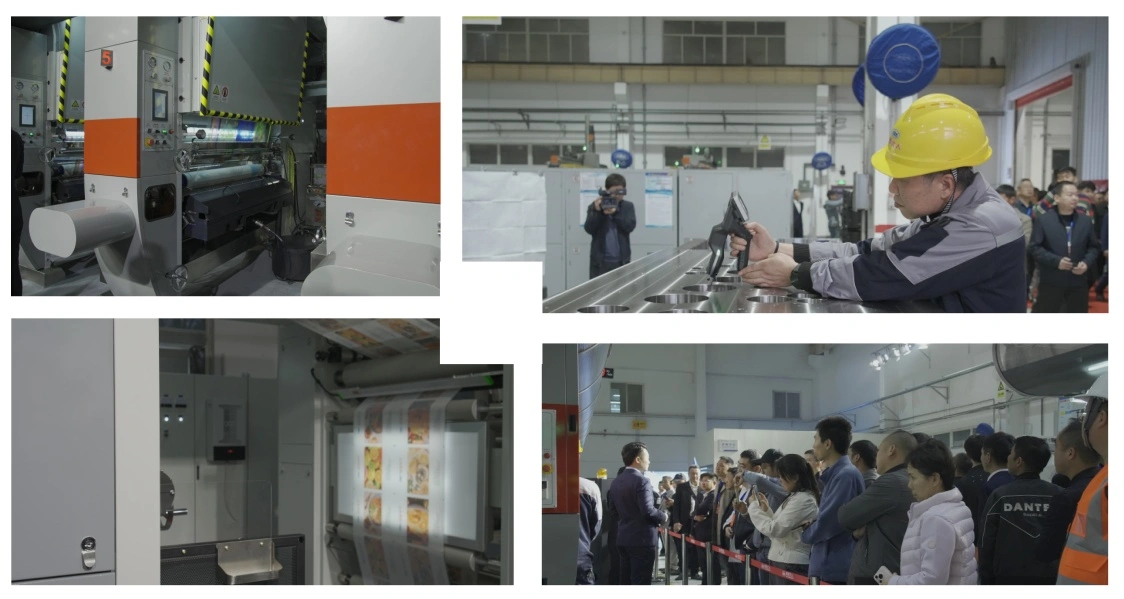

Printing Machinery Factory Workshop

What Makes Our Coating Technology Stand Out?

You face real challenges in optical film production. Uneven coatings waste materials. Contamination ruins entire batches. Speed limitations hurt your bottom line.

Our coating machine solves these problems directly.

Advanced Coating Methods

You get multiple coating options tailored to your specific needs:

Micro-concave roller coating for consistent particle distribution
Comma roller coating for precise thickness control
Slit extrusion coating for high-viscosity formulations
Reverse kiss coating for ultra-thin applications
Wire bar coating for quick changeovers
Multi-roller coating for complex layer structures

Each method maintains micron-level uniformity. Your optical properties stay consistent across the entire web width.

Clean Environment Standards

Dust is your enemy in optical film production. A single particle creates visible defects.

That's why we design the entire Diffusion film Coating Machine to Class 100 purification levels. HEPA filtration systems remove contaminants before they reach your coating zone. Ionizers eliminate static electricity that attracts particles. Your yield rates improve significantly.

Flexible Drying Solutions

Different formulations need different drying approaches. We offer:

Hot oil heating for stable temperature profiles
Steam heating for energy efficiency
Hot air heating for fast solvent evaporation
Natural gas heating for high-volume production
Electric heating for precise zone control

You choose what works best for your process chemistry.

Technical Specifications

Parameter	Specification	Your Benefit
Coating Width	1350mm / 1650mm / 1950mm	Accommodate various substrate sizes without equipment changes
Unwinding System	Dual-station flying knife structure with air-expanding shafts	Zero downtime during roll changes at full production speed
Winding System	Dual-station zero-speed material receiving	Eliminates core wrinkles that compromise film flatness
Tension Control	Closed-loop load cell system	Handles thin films (25μm-250μm) without stretching or wrinkling
Cleanliness	Class 100 purification level	Minimizes defect rates from contamination
Coating Methods	6 different application technologies	Flexibility for various formulation viscosities and thicknesses
Heating Options	5 distinct drying methods	Optimize energy costs and cure profiles for your chemistry

Key Applications For Your Industry For Diffusion film Coating Machine

Consumer Electronics Production

Your smartphone and tablet screens demand perfection. Our machine produces ultra-thin diffusion films with high-haze properties. The coating uniformity ensures brightness enhancement without adding bulk. Battery-powered devices benefit from improved light efficiency.

Large Format Display Manufacturing

TV and monitor panels need consistent luminance across wide areas. Our robust mechanical design prevents vibration-induced defects. You maintain uniformity even at maximum coating widths. The precision backing rolls deliver total indicated runout below 2 micrometers.

Automotive Display Systems

Dashboard screens face extreme conditions. Our Diffusion film Coating Machine processes specialized high-adhesion formulations. Your coatings withstand temperature cycling and humidity exposure. The finished films maintain optical clarity throughout the vehicle's lifetime.

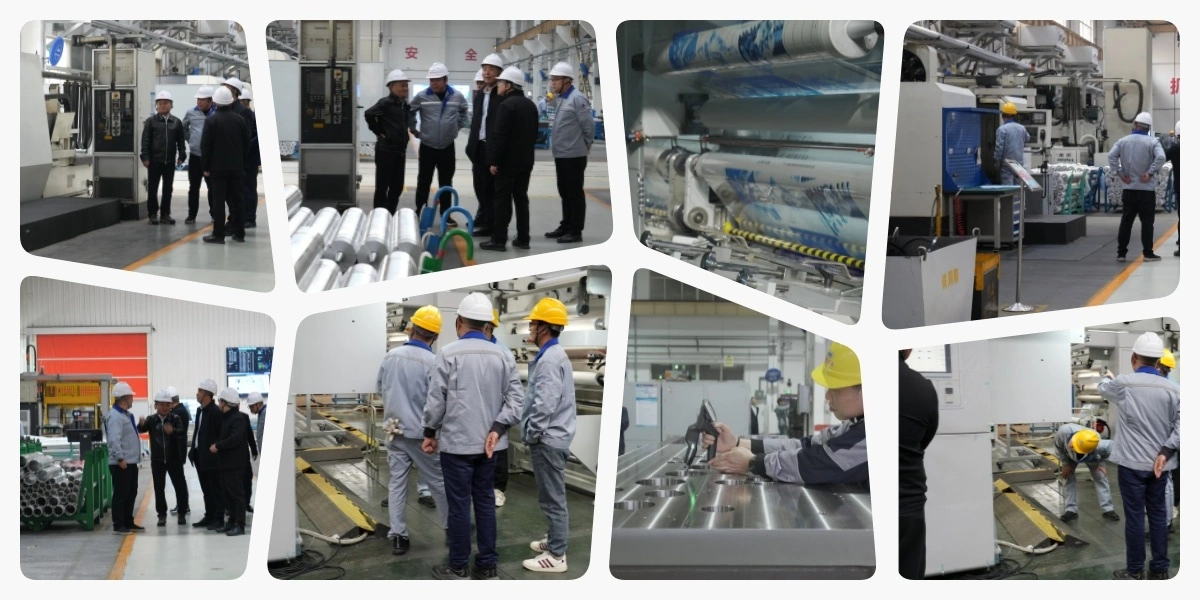

Gravure printing machinery factory workshop

Why Choose Shaanxi Beiren?

Proven Manufacturing Heritage

Since 1967, we've manufactured converting equipment that works. More than 4,000 machines operate worldwide. We hold over 70% market share across China. This experience translates directly to your production reliability.

Engineering Excellence

Our R&D department employs more than 100 senior engineers. They continuously improve machine performance based on real production feedback. You benefit from decades of accumulated knowledge in every design decision.

Precision Manufacturing Capability

We produce over 220 machines annually in our 30,000 square meter facility. All critical components are manufactured in-house using 50+ machining centers from Okuma, Germany, and other premium suppliers. This vertical integration ensures consistent quality.

Complete Quality Systems

We don't just build machines. We create solutions. Our quality control processes guarantee that every component meets specifications before assembly. You receive equipment ready for immediate production startup.

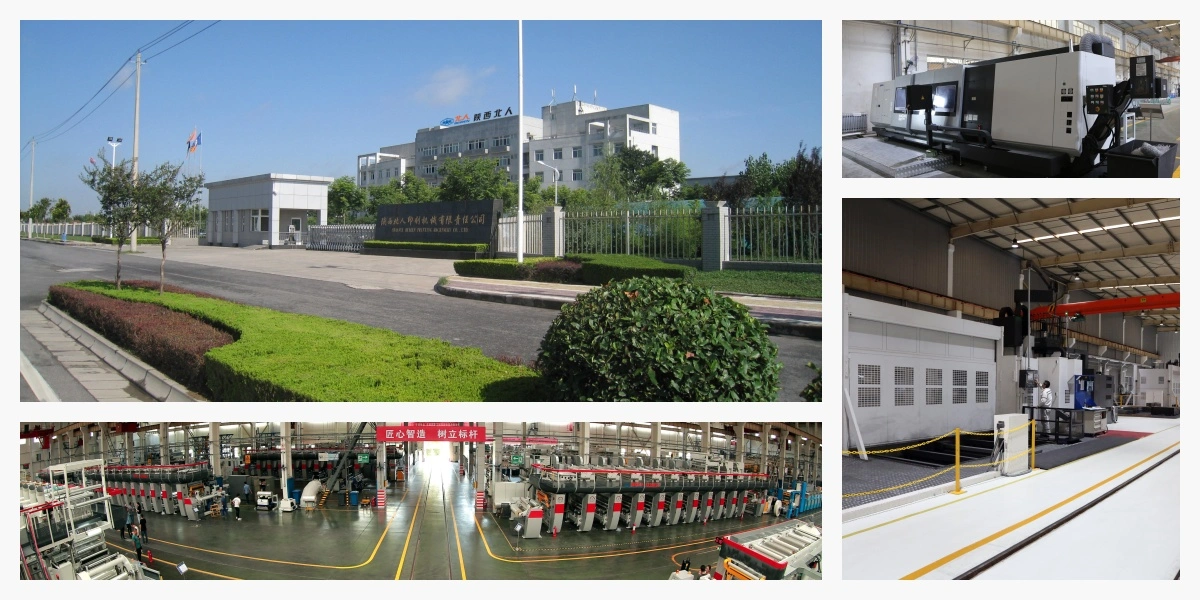

Beiren Printing Machinery Factory

Maintenance and Support Considerations

Regular maintenance keeps your coating line running smoothly. Coating heads typically need cleaning every 24-48 hours depending on your formulation. Check die gap parallelism weekly to prevent streaking defects.

Our tension control systems require minimal intervention. The closed-loop design automatically adjusts for variations in substrate thickness and ambient conditions.

Static elimination bars need periodic inspection. Keep grounding paths clean to maintain voltage below critical thresholds. This prevents dust attraction and potential spark hazards.

Getting Started With Your Project

Every production environment has unique requirements. Your substrate materials, coating formulations, and throughput targets all influence equipment configuration.

We work with you to specify the optimal setup. Our team reviews your process parameters and recommends the best combination of coating method, drying system, and width capacity.

The modular design allows future upgrades. Add UV curing capabilities when needed. Integrate inline inspection systems as quality demands increase. Your initial investment protects your long-term competitiveness.

Qualification Certificate

Exhibition Consultation

FAQ

Q: What coating width options are available, and can the machine be upgraded later?

A: We offer three standard widths: 1350mm, 1650mm, and 1950mm. The modular design allows future upgrades including UV curing capabilities and inline inspection systems as your production requirements evolve.

Q: How does the machine maintain coating uniformity across the entire web width?

A: Our precision backing rolls deliver total indicated runout below 2 micrometers, combined with closed-loop tension control systems. This ensures micron-level uniformity across all coating widths, eliminating hot spots and brightness irregularities.

Q: What is the minimum film thickness the machine can handle?

A: The advanced tension control system can process films ranging from 25μm to 250μm thickness without stretching or wrinkling, making it suitable for ultra-thin substrates required in modern display applications.

Q: How long does installation and commissioning typically take?

A: Installation timelines vary based on your facility requirements and selected configuration. Our engineering team provides comprehensive on-site commissioning support to ensure your production line is operational and meeting quality standards from startup.

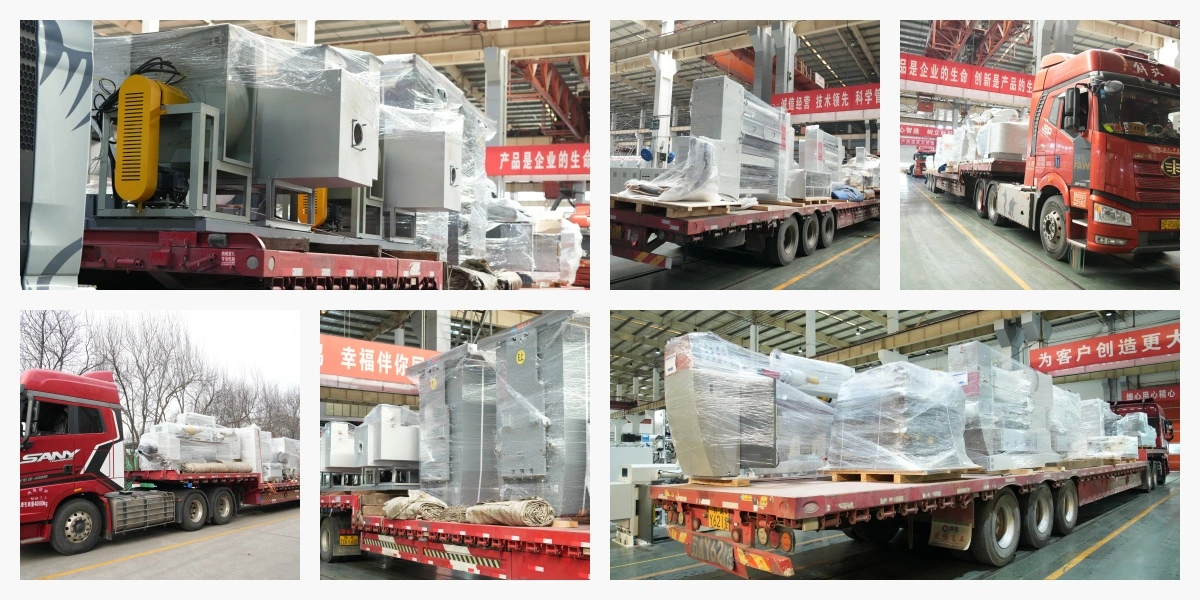

Printing machinery packaging and shipping

Contact Us Today

Reach out to us at sxbr1967@shaanxibeiren.com for detailed technical consultations. We'll help you evaluate how our Diffusion film Coating Machine fits your production goals.
