The fifth generation solventless lamination machine

Simple operation and precise control - the fifth generation solventless lamination machine is favored by the market

The flexible packaging composite process includes a dry lamination technology, wet lamination technology, an extrusion lamination technology, and a solvent-less lamination technology. The first three lamination technology, are high in both VOCs emissions and energy consumption, or high in individual. The solvent-less lamination technology has the characteristics of high efficiency, low cost, zero emission, and low energy consumption. In developed countries in Europe and America, 8 of the 10 new composite machines are solvent-less lamination, which can be foreseen, along with national energy conservation and environmental protection policies. The implementation of this technology in the domestic application will become more and more popular.

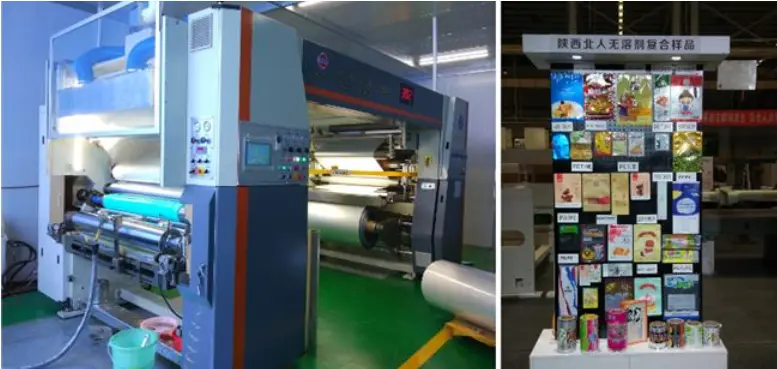

hrough the optimization and upgrade of the transmission system, control system, routing route and rack of the solvent-less laminating machine, the people in the northwest of Shaanxi introduced the fifth generation product, SL-I350/SL-I450 solvent-less laminating machine. The demonstration was successfully demonstrated at the 18th Innovation Achievement Exhibition of Shaanxi Beiren. The machine was laminated with BOPP+VMCPP at a speed of 350m/min. The finished product has no white spots, bubbles, and no curling. The flatness of the lamination is highly recognized by customers.

In the past one year after the launch of the market, the market has responded strongly and purchase orders have continued. After the follow-up investigation, the fifth-generation solvent-less composite machine has better performance, higher flatness, simpler single operation and more tidy receipt. It is the first choice for customers at home and abroad.

Technical Parameters

Max. working speed: 350m/min 450m/min

Feed width range: 550mm ~ 1300mm

Max. unwinder diameter: Φ800mm

Max. rewinder diameter: Φ1000mm

Composite edge alignment accuracy: ± 2mm

Receipt and discharge material roll card form: pneumatic taper chucked

Total power: Approx.80kW/Approx.90kW

Equipment advantages

1.The equipment is heavy and full of appearance. The beam and wall panel are connected by pin shaft, which is stable and easy to operate.

2.The whole machine adopts full servo motor, which has high control and transmission precision.

3.The pneumatic cone top structure of the receiving and discharging materials, single 30 seconds quick refueling, saving labor and time.

4.High-precision metering roller, high uniformity of glue coating, uniformity of uniform speed coating is less than ±0.1g/m2.

5.Standard three-roll composite unit, large diameter cooling roller, composite finished product transparency, flatness (such as pearl film + matt film, bottle label application), and you can directly on the automatic packaging line.

6.Three kinds of curve taper control of the receiving tension, the core waste is controlled in 2-3 layers.

7.It can fully access the intelligent factory platform of Shaanxi Beiren, it can provide comprehensive services for customers to carry out intelligent and automated industrial upgrading.

Application field

The fifth generation product--SL-I350/SL-I450 single station solventless lamination machine application field:

Food industry: chocolate, candy, convenience food, cooked food, dairy products, tea, coffee packaging etc.

Medicine industry: blister (PTP), strip, (SP), bag packaging etc.

Hygienic material industry: Packages for sanitary towels, disposable diapers etc.

The daily chemical industry: Washing powder, facial cleaner, facial mask packaging etc.

Shaanxi Beiren Printing Machinery Co., Ltd has devoted to research and development, produce, selling the kinds of film rotogravure printing machine, paper rotogravure printing machine, CI type flexo printing machine, Precision coating machine, Lamination machine, environmental protection and energy saving equipment and parts of related machines, The mainly business and products as following:

Intelligent factory integrated solution and implementation for packaging and printing industry

In-line rotogravure printing machine for printing food, medicine, daily cosmetics packages etc.

CI type flexo printing machine for printing wide paper printing, aseptic packaging or easy deformation film printing

Inline paper rotogravure printing machine

In-line rotogravure printing machine special for cigarette package

In-line rotogravure printing machine for pre-printing paper

Aseptic packaging material printing, embossing, punching machine

Precision coating lamination machine suitable for kinds of Industrial substrate

Solar back sheet coating machine, Solar back sheet coating & lamination production line

PVDC coating machine, film coating machine, seal packaging material coating machine, coating production line

High grade cleaning precision coating production line

Dry & wet lamination machine for film or paper, lamination equipment, triplex dry lamination machine

Dry & wet lamination machine for al-foil, lamination equipment, triplex dry lamination machine

Single arm solvent-less lamination machine for food and medicine packages.

Turret type solvent-less lamination machine for food and medicine pacages.
