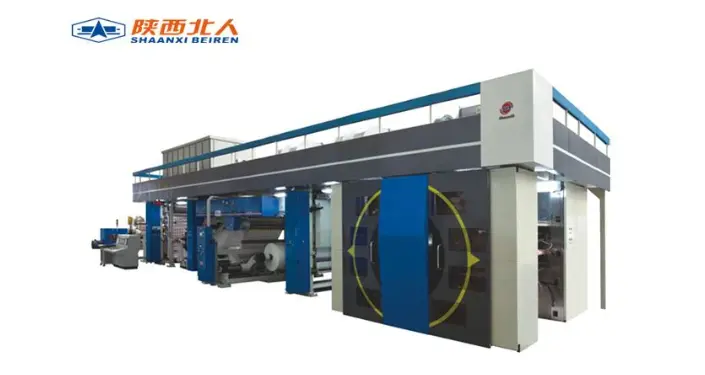

Brand new multi-function FCI300 CI flexo printing machine

Abstract：Brand new multi-function FCI300 CI flexo printing machine has successfully passed the high speed and HD printing test

Brand new multi-function FCI300 CI flexo printing machine has successfully passed the high speed and HD printing test

In recent years, CI flexo printing machine has developed tremendously under the effects of the increasingly develop of flexo printing relevant equipments、material、crafts and other technologies，China made’s gradually improvement and the constantly attention on environment protection from government. After several years’ accumulation, Shaanxi Beiren comes up with an Brand new multi-function FCI300 CI flexo printing machine which has just successfully passed the high speed and HD printing test.

Sepecifications

Max printing speed：300m/min

Print colors：10+1

Max web width：1350mm

Printing length range：350mm～800mm(Can be constantly adjusted )

Tension range：2～30kg(Full overload)

Ink type：Alcohol - soluble (water - based) type flexographic ink

Printing material：LDPE、CPP、BOPP、PET、paper、laminated material and etc.

Application：Hygiene packaging、label、normal food packaging、shopping bag、shrinkable sleeve and etc.

Machine features

1.Can achieve 10 colors front print plus 1 color reverse print or 5 plus 5 colors multi-functions.

2.Multi-ways of material passing, tension control system enable machine high speed running stability.

3.Sleeve type plate cylinder、anilox structure and quick-change doctor blade enable fast-job changing function and increase the production rate.

4.Equipped with printing phase position pre-register and memory functions, which can realize the fast print registration and reduce the waste.

5.Equipped with printing pressure position recording and repeating position functions which can reduce the waste of the repeat orders.

6.Achieving both big manufacturing orders and some smaller customized orders.

Printing test

In order to test the machine performance, Shaanxi Beiren helds the HD printing test together with Fujian Tangsu packaging、Shanghai Yingyao cylinder and Shengweike ink ltd.

Plate cylinder adopts new XPS Crystal 5080 cristal netpoint technology；

Gold、red、blue、yellow、special blue、special red and oil, In total 7 colors;

Printing material is 0.03mm thickness white PE;

Machine printing speed：300m/min.

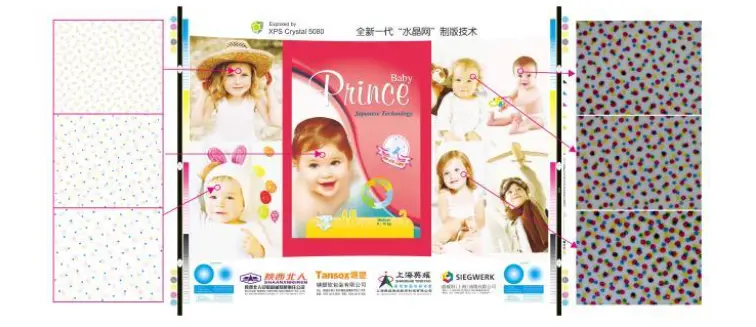

From the comparison we can see：

1.Brilliant net point recovery

2.Picture transmit soomthy,richful color

3.High registration accuracy, ±0.08mm

High quality printing performance when machine running at high speed indicates the machine running accuarcy,plate cylinder movement，inking stability and drying performances have all reached the expectation.

Shaanxi Beiren is one of the few enterprises who first research and manufacture flexo equipments in China.FCI flexo printing machine is a high-end printing equipment researched and developed by Shaanxi Beiren based on the foreign state of art technologies, which ends the totally importing history of high-end FCI printing machine, and laid a solid foundation on the promotion of green-tech enviromental friendly FCI printing machine.

---

Shaanxi Beiren Printing Machinery Co., Ltd has devoted to research and development, produce, selling the kinds of film rotogravure printing machine, paper rotogravure printing machine, CI type flexo printing machine, Precision coating machine, Lamination machine, environmental protection and energy saving equipment and parts of related machines, The mainly business and products as following:

Intelligent factory integrated solution and implementation for packaging and printing industry

In-line rotogravure printing machine for printing food, medicine, daily cosmetics packages etc.

CI type flexo printing machine for printing wide paper printing, aseptic packaging or easy deformation film printing

Inline paper rotogravure printing machine

In-line rotogravure printing machine special for cigarette package

In-line rotogravure printing machine for pre-printing paper

Aseptic packaging material printing, embossing, punching machine

Precision coating lamination machine suitable for kinds of Industrial substrate

Solar back sheet coating machine, Solar back sheet coating & lamination production line

PVDC coating machine, film coating machine, seal packaging material coating machine, coating production line

High grade cleaning precision coating production line

Dry & wet lamination machine for film or paper, lamination equipment, triplex dry lamination machine

Dry & wet lamination machine for al-foil, lamination equipment, triplex dry lamination machine

Single arm solvent-less lamination machine for food and medicine packages.

Turret type solvent-less lamination machine for food and medicine pacages.
